Evotech Endoscope

IDEA Gold Award 2013
Designed at IDEO.org, 2012
Currently in trial use by doctors in Uganda and India.

Evotech radically redesigned the standard endoscope found in American Hospitals (average cost: $70,000) and created a low-cost device with off-the-shelf parts designed for use in the developing world and with a cost of approximately $250.

Our project was to improve the design to be durable, sterilizable, waterproof, and capable of being manufactured at scale. We also identified new business opportunities for the endoscope and built a plan for expanding the devices reach.

Process

Assembling internal electronics

Assembling internal electronics

Using a doctor's test box to simulate surgery procedures

Using a doctor's test box to simulate surgery procedures

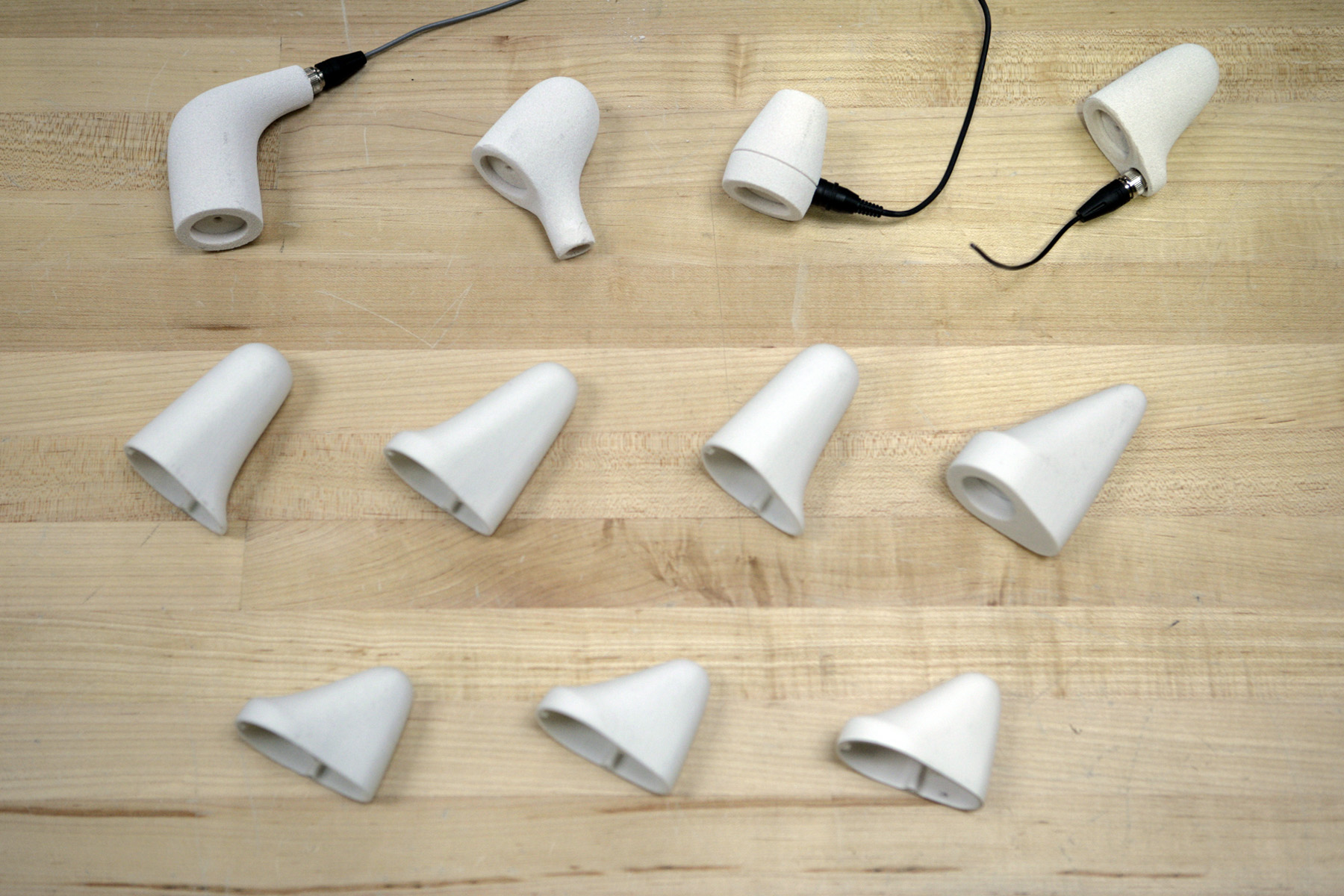

Building models to test different handle shapes

Building models to test different handle shapes

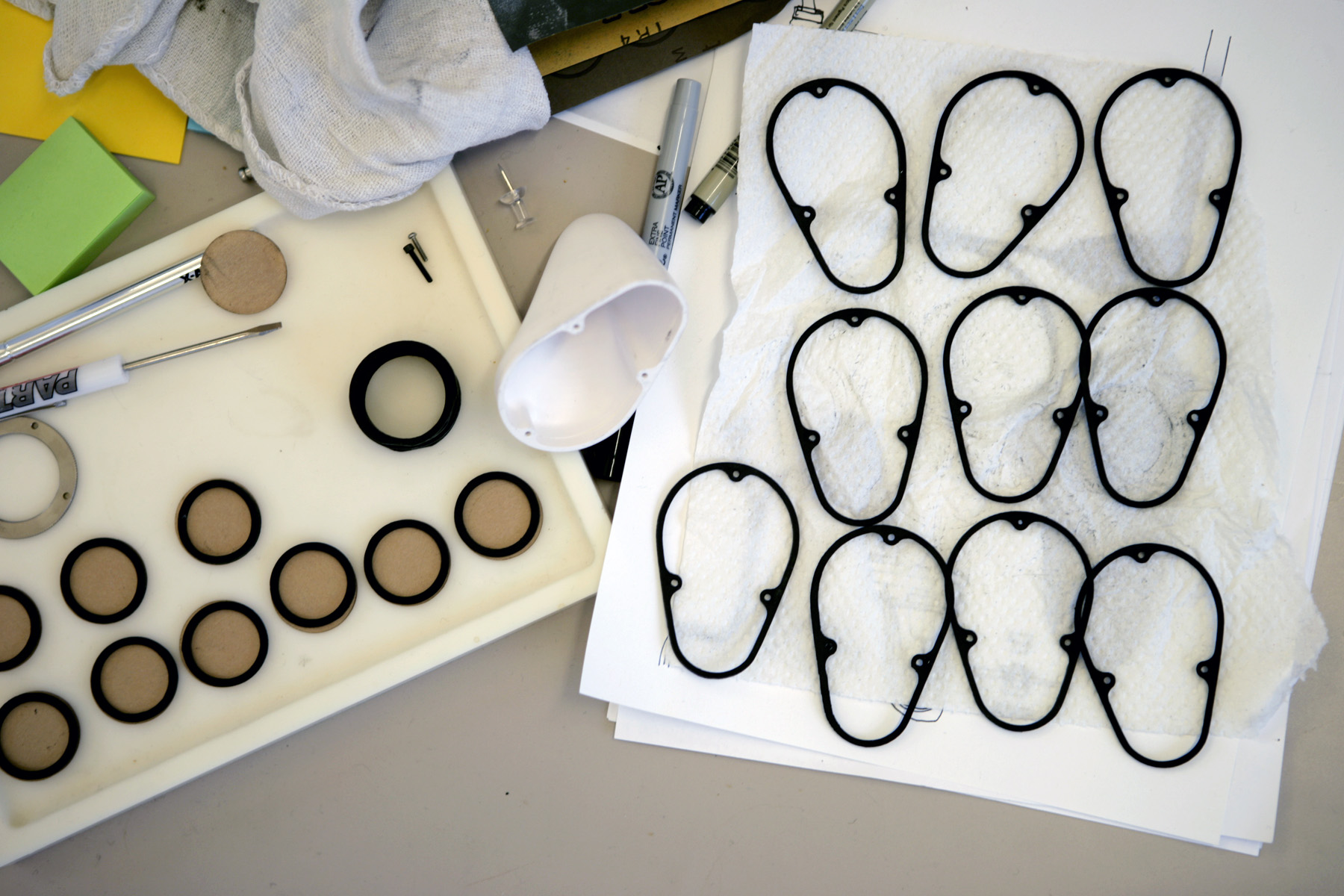

Gaskets and other parts for functional units.

Gaskets and other parts for functional units.

Machining the light source heat sink

Machining the light source heat sink

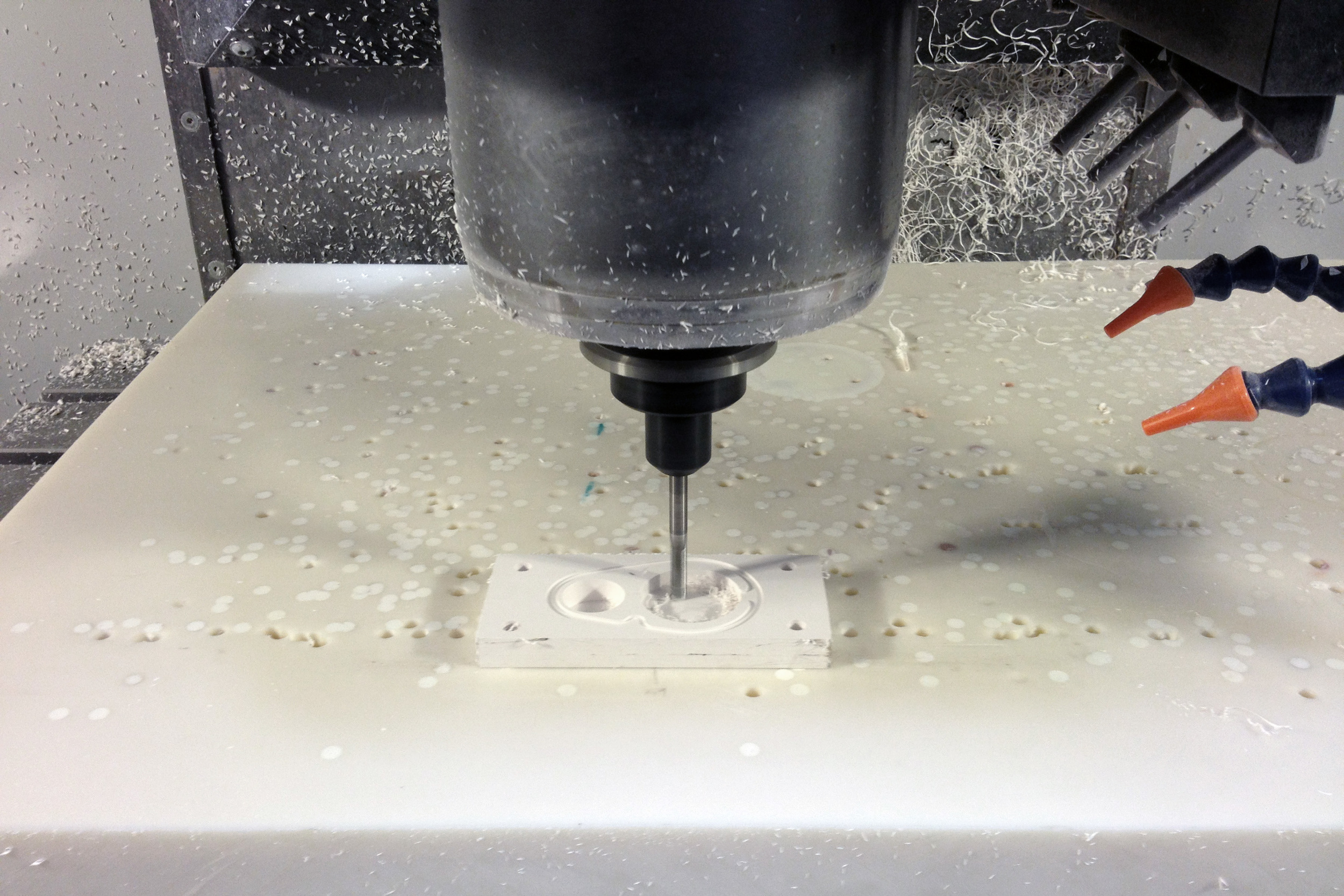

Machining the waterproof casing

Machining the waterproof casing

Assembling internal electronics

Using a doctor's test box to simulate surgery procedures

Building models to test different handle shapes

Gaskets and other parts for functional units.

Machining the light source heat sink

Machining the waterproof casing
